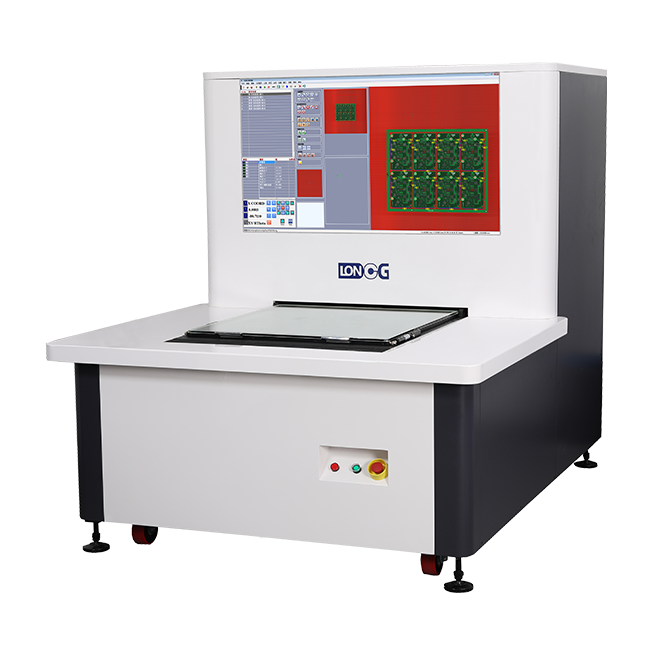

White light automatic scanner

1. The base is made of marble (Grade 00) material, which guarantees extremely high stability 2. Abrasive grade ball screws and precision linear guides are used, together with Panasonic high-performance AC servo full closed-loop control, high precision.

Specification
Feature

LSC SERIES

Specification

Technical Specification
Feature

Instrument Features

		LSC320	LSC430	LSC540	LSC860
Measuring range (mm)	X	200	300	400	800
	Y	300	400	500	600
	Z	100（focusing）	100（focusing）	100（focusing）	100（focusing）
Working table (mm)	Marble Granite (mm2)	380*390	500*500	630*510	760*950
	GlassGranite (mm2)	220*315	315*415	415*515	615*815
	Glass bearing(kg)	5	5	5	5
Contour dimension（mm3）		10808601860	98011001845	108012001845	165013501860
Instrument weight（kg）		420kg	650kg	890kg	1380kg
Measuring precision（µm）		XY axis≤3+L/100)μm ,Z axis（Laser probe optional）≤（5+L/100）μm
Image and measuring system	Measuring speed	300mm/s
	CCD	high-resolution color camera
	Lens	90mm wide FOV Dual Telecentric lens
	Video amplification zoom ratio	50X
	Working distance	150(mm)
Repeatability		3µm
Measuring precision（µm）		XY axis≤3+L/100)μm ,Z axis（Laser probe optional）≤（5+L/100）μm
Bottom Light		Programmable LED Surface Light and Profile Light
Voltage		220V±10％(AC) 50HZ 20A
