Cubic optical measuring instrument

1. Take you into the world of three-dimensional composite measurement: fully automatic gantry-style large-stroke composite three-dimensional measuring instrument. 2. The base is made of marble (00 grade) material, and the solid platform design guarantees extremely high stability and rigidity.

  • Specification
  • Feature
  • QVL series
  • QVH SERIES
  • Specification

    Technical Specification

  • Feature

    Instrument Features

H-type: optional laser measuring head group
T-type: optional contact measuring head group
M-type：Map Navigation System
L-type: Lighting Lifting System

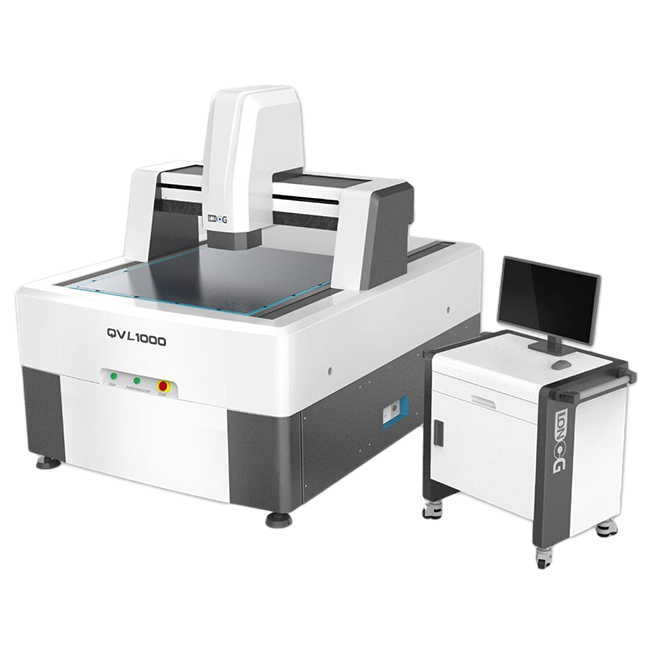

  QVL500 QVL800 QVL1000 QVL1200 QVL1800 QVL2016 QVL2216 QVL2520
Measuring range (mm) X 400 600 800 1000 1200 1600 1600 2000
Y 500 800 1000 1200 1800 2000 2200 2500
Z 200 200 200 200 200 200 200 200
Working table(mm) Marble & Granite (mm2) 640*680 800*940 1010*1210 1238*1390 1440*2020 1850*2160 1850*2410 2240*2760
Glass table top (mm2) 598*638 790*890 968*1168 1198*1348 1398*1968 1798*2118 1798*2330 2198*2718
Glass laoad-bearing (kg) 75kg 75kg 75kg 75kg 75kg 75kg 75kg 75kg
Marble load bearing (kg) 150kg 150kg 150kg 150kg 150kg 150kg 150kg 150kg
Contour dimension（mm） 1340*1100*1780 1600*1300*1780 1900*1450*1780 1900*1900*1780 2700**1900*1780 3000*2400*1850 3100*2500*1850 3450*2680*1850
Instrument weight（kg） 1000kg 1800kg 2600kg 3200kg 4200kg 6000kg 7000kg 11000kg
Image and measuring system Measuring speed MAX:500mm/s
CCD LT-3D custom made high-definition color ccd of industrial level
Varifocus lens Full-automatic zoom：0.7－4.5X
Video amplification zoom ratio 40－280X（ 24-inch monitor）
Object space field 10.6－1.6mm
Working distance 82mm
Display resolution 0.0001mm
Motion control system: four-axis full-close-loop control: three-axis AC servo motor full-close-loop control, pre-pressing linear sliding rail and grinding level ball screw drive, stepping motor coaxial-control lens group.
Repeatability 2μm
Measuring precision（µm） XY axis＜(2.8+L/200) um, Z-axis (optical measuring)＜(5+L/200) um
Lighting Program-controlled four-loop-eight-area LED surface light and direct axis contour cold light source (coaxial cold light source is optional), adjustable brightness
Power supply 220V±10%(AC) 50HZ 20A
  • Bring you into a 3D composite measurement world: Automatic gantry big-stroke composite coordinate measuring instrument.
  • The base is made of marble (grade 00) material. With solid design of platform, it is highly stable and rigid.
  • Grinding level ball screw and precise linear guide rail are used. Coordinated with Panasonic high performance AC servo system for closed-loop control, it has high precision, high speed and high stability.
  • High-definition color CCD of industrial level from the LT-3D customization is used to ensure high quality measurement screen and rapid measuring rate.
  • Automatic magnification change lens is used, calibration is not required after changing magnification.
  • Programmable 4-ring-and-8-zone LED surface cold light source, with cold light source of straight axle profile (coaxile cold light source is optional).
  • Open-type mounting optical ruler 0.0005mm.
  • Renishaw contact measuring head set from Britain and Keyence laser measuring head set from Japan.
  • Self-reliantly developed automatic 3D measuring software with powerful function, enabling programmable automatic measurement.
  • Coaxial measurement of image, probe and laser, enabling programmable automatic measurement.
  • Z-axle measuring range:300mm.
  • Specification

    Technical Specification

  • Feature

    Instrument Features

H-type: optional laser measuring head group
T-type: optional contact measuring head group
M-type：Map Navigation System
L-type: Lighting Lifting System



  QVH500 QVH800 QVH1000 QVH1200 QVH1800 QVH2016 QVH2216 QVH2520
Measuring range(mm) X 400 600 800 1000 1200 1600 1600 2000
Y 500 800 1000 1200 1800 2000 2200 2500
Z 200 200 200 200 200 200 200 200
Working table(mm) Marble & Granite (mm2) 640*680 800*940 1010*1210 1238*1390 1440*2020 1850*2160 1850*2410 2240*2760
Glass table top (mm2) 598*638 790*890 968*1168 1198*1348 1398*1968 1798*2118 1798*2330 2198*2718
Glass laoad-bearing (kg) 75kg 75kg 75kg 75kg 75kg 75kg 75kg 75kg
Marble load bearing (kg) 150kg 150kg 150kg 150kg 150kg 150kg 150kg 150kg
Contour dimension（mm） 1340*1100*1780 1600*1300*1780 1900*1450*1780 1900*1900*1780 2700*1900*1780 3000*2400*1850 3100*2500*1850 3450*2680*1850
Instrument weight（kg） 1000kg 1800kg 2600kg 3200kg 4200kg 6000kg 7000kg 11000kg
Image and measuring system Measuring speed MAX:500mm/s
CCD LT-3D custom made high-definition color ccd of industrial level
Varifocus lens Manual-control zoom orientation lens 0.7-4.5X（coaxial full-automatic zoom）
Video amplification zoom ratio 40－280X（ 24-inch monitor）
Object space field 10.6－1.6mm
Working distance 82mm
Display resolution 0.0001mm
Repeatability 2μm
Measuring precision(µm) XY axis＜(2.8+L/200) um, Z-axis (optical measuring)＜(5+L/200) um
Lighting Program-controlled four-loop-eight-area LED surface light and direct axis contour cold light source (coaxial cold light source is optional), adjustable brightness
Power supply 220V±10%(AC) 50HZ 20A
  • Bring you into a 3D composite measurement world: Automatic gantry big-stroke composite coordinate measuring instrument.
  • The base is made of marble (grade 00) material. With solid design of platform, it is highly stable and rigid.
  • Grinding level ball screw and precise linear guide rail are used. Coordinated with Panasonic high performance AC servo system for closed-loop control, it has high precision, high speed and high stability.
  • High-definition color CCD of industrial level from the LT-3D customization is used to ensure high quality measurement screen and rapid measuring rate.
  • Automatic magnification change lens is used, calibration is not required after changing magnification is optional.
  • Programmable 4-ring-and-8-zone LED surface cold light source, with cold light source of straight axle profile (coaxile cold light source is optional).
  • Open-type mounting optical ruler 0.0005mm.
  • Renishaw contact measuring head set from Britain and Keyence laser measuring head set from Japan.
  • Self-reliantly developed automatic 3D measuring software with powerful function, enabling programmable automatic measurement.
  • Coaxial measurement of image, probe and laser, enabling programmable automatic measurement.
  • Z-axle measuring range:300mm.
